A customized Lifting Tool

SAL’s ability to meet a very demanding project schedule made the decisive factor for us.

Andrei Lupan, Logistics Manager, GeoSea

Horns Rev 3
ClientDEME GeoSea / SAL
Scope of workUpright transportation of 49 Transition Pieces (TPs)
Engineering scope
  • Project Management
  • Grillage design and structural calculations
  • Seafastening design
  • TP-Lifting tool design
  • Supervision grillage production
  • Supervision Transition Piece Lifting Tool (TPLT) production
  • Procurement Grillage
  • Route assessment (motion analyses, weather routing)
Methods / Software
  • AutoCAD
  • Inventor
  • RFEM
  • Octopus-Office

Our solutions

  • Motion response analysis with OCTOPUS-Office to calculate wave induced forces and accelerations acting on the cargo during the transport as basis for the structural design
  • Design of a tailor-made seafastening grillage and clamping system and strength verification using RFEM  to assure that the stress level in the TP flange, the grillage and the vessels structure is within the limits (DNVGL-ST-N001) during transportation
  • Concept design of a tailor-made TP lifting tool which replaces the crane hook to assure sufficient lifting height despite of the exceptional height of the TPs and the pre-installed roof top
  • Extensive project management to get the structures designed, calculated, approved, manufactured, load tested, certified, coated and delivered and to get the vessel mobilised for the project in time
  • Project engineering support for manufacturing and installation by naval architects and welding engineers

Read the full story

A Demanding Schedule

The North Sea has recently become the staging post for a huge boom in offshore wind farms, resulting in the involvement of several offshore wind projects for the SAL team. Tying in with the on­going Hornsea Project One offshore wind farm, GeoSea NV awarded SAL the transportation of 49 transition pieces (TPs) for the Horns Rev 3 offshore wind farm.

The assignment compiles transportation of TPs from fabrication yards in Aalborg, Denmark and Vlissingen, the Netherlands to the project port of Esbjerg in Denmark. “SAL’s ability to meet a very demanding project schedule made the decisive factor for us”, states Andrei Lupan, Logistics Manager at GeoSea.

Within a very short time frame from kick-off until the start of the project, our team of experts at SAL not only prepared a full HSSE and Quality plan, and created the technical design, but also finalized the engineering work. The execution of procurement had to be managed intensively, including professional budget control, and the fabrication of five TP grillages and one lifting tool were also necessary to get MV Lone ready in time to load the first units.

Close attention to detail and risk in both planning and execution ensured  consistent progress and avoided delays – meeting both our client’s and our own milestones on time. Our project management team succeeded in developing and maintaining a well-structured communication plan with continuous reporting to the client and various sub-contractors.

“We are proud that GeoSea placed their trust in us for this time-critical project”, explains SAL Project Manager Morten Hinrichs, “Looking at such a tight time schedule, we draw on past experience and expertise to ensure a safe and successful project. With our ready-made designs for TP grillages and TP lifting tools, which can be modified to the specific needs of our clients, it was possible to meet the demanding requirements of our client.”

A tight lift

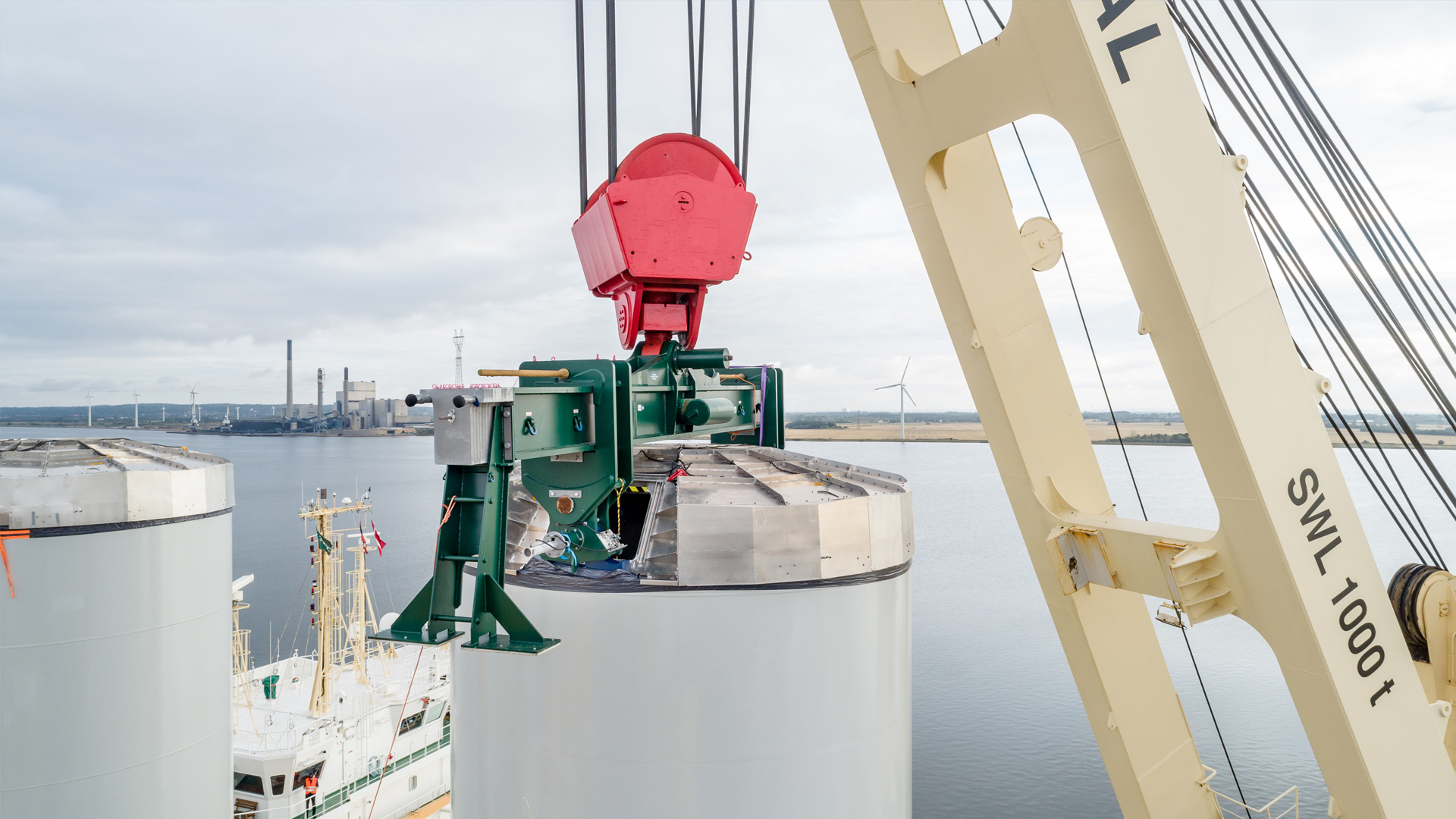

Each of the 49 TP’s measures 32.27 metres in height, has a dimension of 7.12 metres and has a unit weight of 530 tons. Due to the exceptional height of the TP’s and their pre-installed roof top a very low rigging height was necessary to ensure a safe and efficient lift with a sufficient lifting height. For this reason a tailor-made TP lifting tool had to be designed to replace the usual crane hook.

All TP’s were transported using a tailor-made seafastening grillage and clamping system.


“We are very satisfied with the realization of the project by SAL. It again underlines their knowledge and expertise in the technical heavy lift transport market for complex offshore wind projects. Thanks to SAL’s extensive project management, all necessary structures were designed, calculated, approved, manufactured, load tested, certified, coated and delivered in time to guarantee a timely mobilization and delivery of the project vessel”, says Andrei Lupan, Logistics Manager at GeoSea.
Due to SAL’s well-known flexibility on spontaneous changes and the pro-active approach to assist our client wherever possible, MV Lone was delivered in time to our client and successfully performed in the Horns Rev 3 project.
